Reverse Proxy with Nginx Proxy Manager

Jerry

6 Jul, 2022

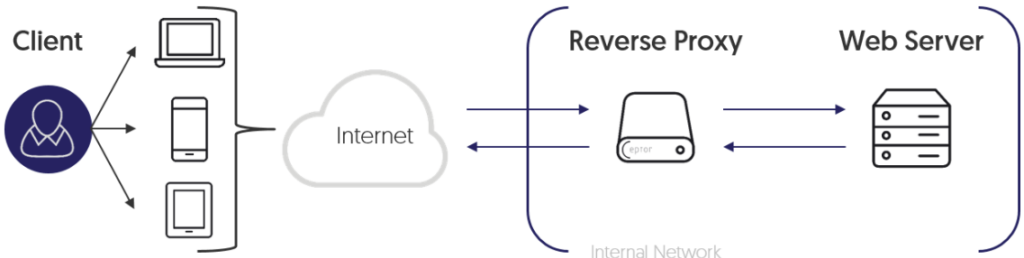

What is Nginx Proxy Manager?

Nginx Proxy Manager is a pre-built docker image that enables users to accomplish reverse proxying hosts with SSL termination easily.

Features

Beautiful and Secure Admin Interface (Tabler)
Easily create forwarding domains, redirections, streams, and 404 hosts without knowing anything about Nginx
Free SSL using Let’s Encrypt or provide your own custom SSL certificates
Access Lists and basic HTTP Authentication for your hosts
Advanced Nginx configuration available for super users
User management, permissions, and audit log

Prerequisite

Server with Docker and Docker compose Installed
Public IP and domain name

Quick Setup

Create a docker-compose.yml file similar to this:

version: '3'services:   app:     image: 'jc21/nginx-proxy-manager:latest'     restart: unless-stopped     ports:     - '80:80'     - '81:81'     - '443:443'     volumes:     - ./data:/data     - ./letsencrypt:/etc/letsencrypt

Bring up your stack by running
```
docker-compose up -d
```
Access Nginx Proxy Manager admin UI through http://127.0.0.1:81 with below default credential:
```
Email:    admin@example.com
Password: changeme
```
Note: Immediately after logging in with this default user you will be asked to modify your details and change your password.
Configure your domain name (k247.win, www.k247.win) details to point to your Nginx proxy manager server public IP address.
Create Hosts to forward traffic from the Nginx proxy manager to your website or services. Hosts -> Proxy Hosts -> Add Proxy Host
